• SuperWave Equinoxe Extreme HD Edition

    Browse the information below to learn more about the SuperWave Equinoxe Extreme HD Edition.

    broken image

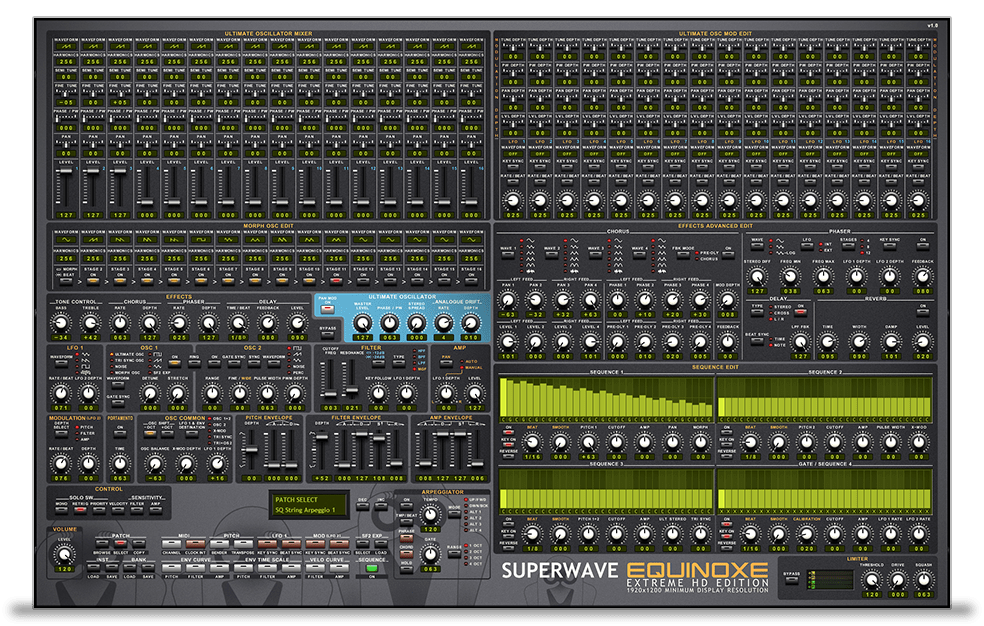

    Equinoxe Extreme HD Edition

    £24.99 - £19.99

    Equinoxe Extreme HD Edition is the Equinoxe’s big brother designed for use in professional studios with access to high-resolution LCD monitors.



    The Equinoxe Extreme HD Edition has the same functionality as the standard Equinoxe, however all switchable panels are now accessible from a single user interface*.



    The standard version of the Equinoxe synthesizer is also provided free of charge when purchasing the Extreme HD Edition.



    Jarre used an amazing range of powerful analogue synthesizers including instruments by Arp, Korg, Moog, Oberheim, Roland, Sequential Circuit, Yamaha and many more. These days, it would be nearly impossible to build such a vast collection of instruments and it would cost a fortune! The SuperWave Equinoxe can accurately replicate the sounds used to create Jarre’s classic works such as Oxygene, Equinoxe, Magnetic Fields and Rendez-Vous. We supply a full range of presets and a selection of tracks in Cubase and MIDI file formats demonstrating the accuracy achieved by this powerful musical instrument. Equinoxe 4 and Magnetic Fields 2 are supplied with the trial version and 12 additional tracks are supplied via email when purchased. The SuperWave Drums Bundle is also provided free of charge when purchasing the Equinoxe synthesizer.



    Equinoxe is a very powerful and versatile instrument and can be used for any type or genre of music. It features much of the technology used in the Ultimate synth, but has been modified to enable the creation of sounds and effects of the analogue synthesizers used by Jarre. Equinoxe is capable of huge leads, pads, strings, basses and sound effects. Powerful features include the Ultimate Oscillator which has a total of 16 fully programmable oscillators. All the oscillators can have their own individual settings which include Waveform, Level and Pan. All 16 oscillators on the Ultimate Oscillator can also be detuned and stereo spread from a single control which makes programming oscillator stacked sounds a breeze. The Equinoxe features four thirty-two step Sequencers, an Arpeggiator and Multi-Effects which include Tone Control, Chorus, Phaser, Delay, Reverb and Limiter with Drive.



    Equinoxe is the only synthesizer dedicated to the works of Jean Michel Jarre!



    *Note: A minimum display resolution of 1920x1200 is required to display the Equinoxe Extreme HD Edition fully on screen.

    Technical Specifications

    Oscillators
    2 Oscillators (Total of 28 Oscillators played simultaneously)
    Osc 1 Waveforms: Ultimate Osc, Tri Sync Osc, Noise, Morph Osc, Square, Saw, Triangle, SF2 Exp
    Osc 2 Waveforms: Square, Saw, Triangle, Noise, Perc
    Ultimate Osc Waveforms: Sine, Saw, Ramp, Soft Ramp, Peak Ramp, Square, Triangle, Peak, Octava, Cluster1, Cluster2, Noise
    Morph Osc Waveforms: Sine, Saw, Ramp, Soft Ramp, Peak Ramp, Square, Triangle, Peak, Octava, Cluster1, Cluster2
    Osc 1 Controls: Waveform, Gate Sync, On, Ultimate Osc Detune, Ultimate Osc Stretch, Tri Sync Slide Speed, Tri Sync Mode, Noise Cutoff, Noise Resonance, Morph, Morph Beat, Square Pulse Width, Square PWM Depth, Saw Shape, Saw LFO 1 Depth, Triangle Shape, Triangle LFO 1 Depth, SF2 Exp Level, SF2 Exp Spread
    Osc 2 Controls: Ring, On, Gate Sync, Sync, Waveform, Range, Fine/Wide, Square Pulse Width, Square PWM Depth, Saw Level, Saw Harmonics, Triangle Level, Triangle Harmonics, Noise Cutoff, Noise Resonance, Perc Level, Perc Decay
    Ultimate Osc Controls: Pan Mod On, Master Level, Phase/PW, Stereo Spread, Analogue Drift Rate, Analogue Drift Depth
    Ultimate Osc Mixer Controls: Waveform, Harmonics, Semi Tune, Fine Tune, Phase/PW, Pan, Level
    Ultimate Osc Mod Edit Controls: Tune Depth, PW Depth, Pan Depth, LVL Depth, Waveform, Key Sync, Rate/Beat
    Morph Osc Edit Controls: Waveform, Harmonics, Morph/Beat, Stage



    Osc Common
    Osc Shift: -2 +2 Octaves
    LFO 1 & Env Destinations: Osc 1+2, Osc 2, X-Mod, Tri Sync, Tri Sync + Osc 2
    Controls: -Oct +Oct, LFO 1 & Env Destination, Osc Balance, X-Mod Depth, LFO 1 Depth



    Filter
    2 Resonant Filters: State Variable -12dB/-24dB, Moog
    Filter Types: Low Pass, Band Pass, High Pass
    Controls: Cutoff Frequency, Resonance, -12dB/-24dB, Type, Key Follow, LFO 1 Depth



    Amplifier
    Controls: Pan, LFO 1 Depth, Level



    Envelopes
    3 Envelopes with Time Scale and Output Contour function
    Contour Types (Curve): 13
    Pitch Envelope Controls: Attack, Decay, Curve, Time Scale
    Filter Envelope Controls: Depth, Attack, Decay, Sustain, Release, Curve, Time Scale
    Amp Envelope Controls: Attack, Decay Sustain, Release, Curve, Time Scale



    Low Frequency Oscillators
    2 LFO's (Low Frequency Oscillators)
    LFO 1 Waveforms: Triangle, Saw, Square, Sample and Hold
    Modulation (LFO 2) Waveforms: Triangle
    Beat Ratios: 33
    LFO 1 Controls: Waveform, Rate/Beat, LFO 2 Depth, Key Sync, Beat Sync
    Modulation (LFO 2) Controls: Depth Select, Rate/Beat, Depth, Key Sync, Beat Sync



    Arpeggiator
    Classic + Phrase Arpeggiator
    Modes: Up/Forward, Down/Back, Alt1, Alt2, Alt3, Alt4
    Range: 1-4 Octaves
    Beat Ratios: 18
    Controls: On, Tempo/Beat, Phrase On/Off, Chord On/Off, Hold, Mode, Range, Tempo, Gate



    Sequencer
    32 Step Sequence x4 (Modulation x3, Gate)
    Directions: Forward and Reverse
    Beat Ratios: 18 (Independent beat resolution for each sequence)
    Sequence 1 Destinations: Pitch 1, Cutoff, Amp, Pan, Morph
    Sequence 2 Destinations: Pitch 2, Cutoff, Amp, Pulse Width, X-Mod
    Sequence 3 Destinations: Pitch 1+2, Cutoff, Amp, Ult Stereo, Tri Sync
    Sequence 4 Destinations: Cutoff, Amp, LFO 1 Rate, LFO 2 Rate
    Sequence 1 Controls: On, Key On, Reverse, Beat, Smooth, Pitch 1, Cutoff, Amp, Pan, Morph
    Sequence 2 Controls: On, Key On, Reverse, Beat, Smooth, Pitch 2, Cutoff, Amp, Pulse Width, X-Mod
    Sequence 3 Controls: On, Key On, Reverse, Beat, Smooth, Pitch 1+2, Cutoff, Amp, Ult Stereo, Tri Sync
    Sequence 4 Controls: On, Key On, Reverse, Beat, Smooth, Calibration, Cutoff, Amp, LFO 1 Rate, LFO 2 Rate



    Effects
    Effect Types: Tone Control, Chorus, Phaser, Delay (Stereo, Cross, L/R), Reverb, Limiter with Drive
    Tone Controls: Bass, Treble
    Chorus Controls: Rate, Depth, Wave, FBK Mode, On, Pan, Phase, Mod Depth, Level, Pre-Delay, Feedback
    Phaser Controls: Rate, Depth, Wave, LFO (Internal/External), Stages, Key Sync, On, Stereo Diff, Freq Min, Freq Max, LFO 1 Depth, LFO 2 Depth, Feedback
    Delay Controls: Time/Beat, Feedback, Level, Type, On, Beat Sync, LPF Feedback
    Reverb Controls: Time, Width, Damp, Level, On
    Limiter Controls: Bypass, Threshold, Drive, Squash



    Other Features
    Integrated Patch Browser for loading and saving of FXP and FXB files
    20 note polyphonic operation
    SF2 Wavetable Expansion Oscillator
    Main volume control
    Mono/Polyphonic control
    Portamento control
    Midi CC control with learn capability
    192 high quality presets



    System Requirements

    Operating System: Windows 7 or newer

    Processor: 2 GHz+ recommended

    Display: 1920 × 1200 or larger / 24 bit colour depth

    Audio Demos

    Video Audio Demos

    broken image
  • Download Trial

    All SuperWave products are fully operational for 21 days from the date of installation.

    After this time period, audio output will be inaudible.



    Equinoxe HD is for Windows only, NOT for Mac!

    Equinoxe HD v1.2 (x86)

    Equinoxe HD v1.2 (x64)

  • Sound Patches

    All sound patches are supplied in FXP/FXB file format.

    For information on how to import FXP/FXB files, refer to your VST Host application manual.

    Equinoxe Factory Patches

    Equinoxe Effects Patches

    Equinoxe Default Patches

    Equinoxe Initialize Bank

  • Purchase Equinoxe Extreme HD Edition

    Authorisation codes are forwarded via email within 24 hours of purchase.
